Tire Curing Chambers
Klik pada gambar untuk memperbesar
FITUR
DESKRIPSI / SPESIFIKASI TEKNIS
|
Model |
WTVBD-12PH |
|
Oven drying capacity |
12 PCS |
|
Max. size tire |
12.00-22.5 inch |
|
The number of workers |
|
|
Workshop area |
|
|
Total electrical power |
78,9kW |
|
Long drying time |
2-3.5 hours/per poses |
|
Production capacity / day (20hours) |
|
|
Electrical voltage |
380V – 50HZ |
|
Needed : Air compressor & Air tank |
(The buyer is set up) |
|
Specification air compressor (1unit) |
Wind supply capability : 0.9M³/min Pressure : 1.25 Mpa Electrical power : 7.5 kW (10) |
|
Specification air tank(1unit) |
Volume tank capacity : 1m³ Pressure : 1.25 Mpa Resistant to temperature: 110? |

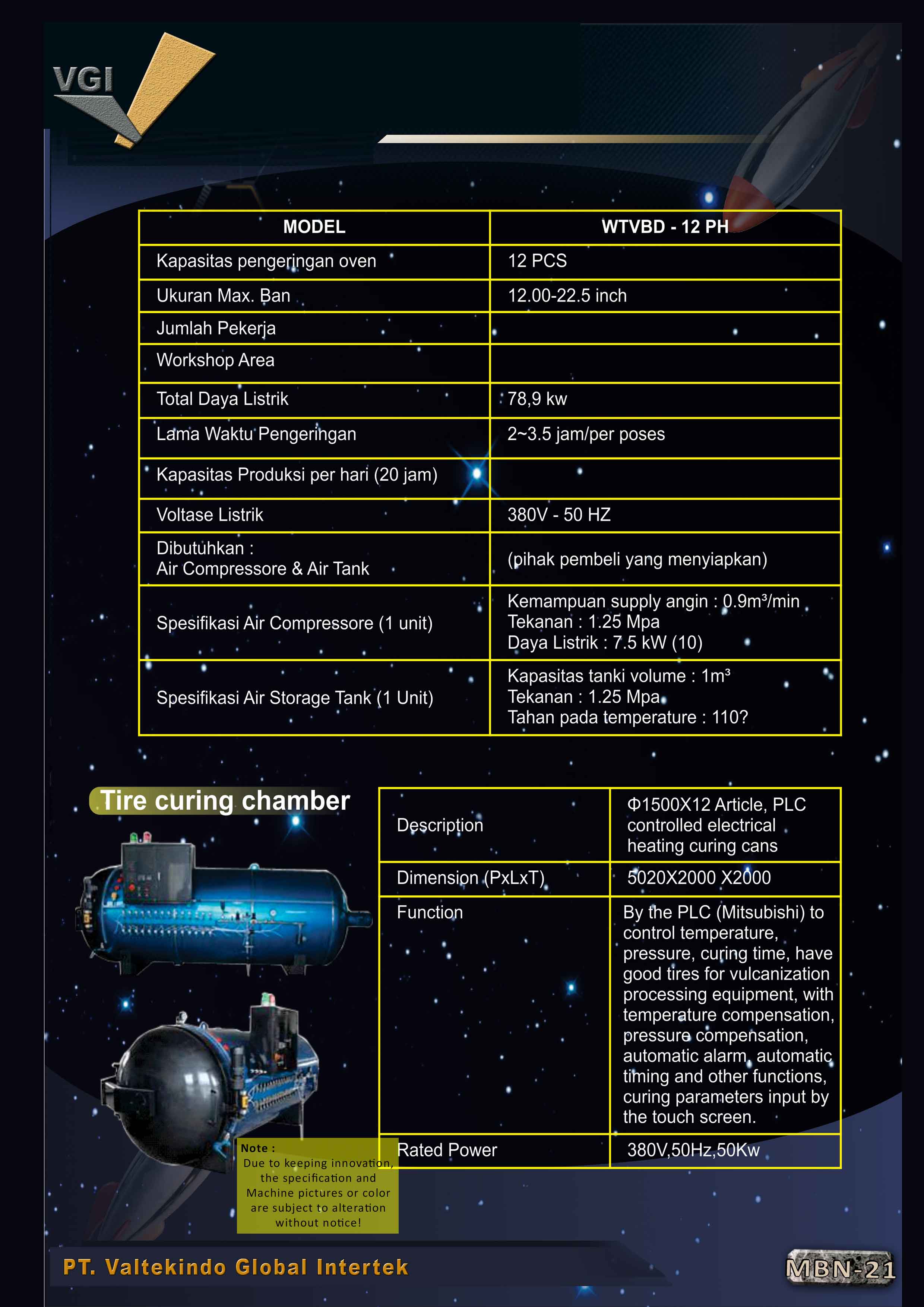

Tire curing chamber
|
Description |
Ф1500X12 Article, PLC controlled electrical heating curing cans |
|
Dimension (P x L x T) |
5020X2000X2000 |
|
Function |
By the PLC (Mitsubishi) to control temperature pressure, curing time, have good tires for vulcanization processing equipment, with temperature compensation, pressure compensation, automatic alarm automatic timing and other functions< curing parameters input by the touch screen |
|
Rated Power |
380V, 50HZ, 50Kw |
Video
