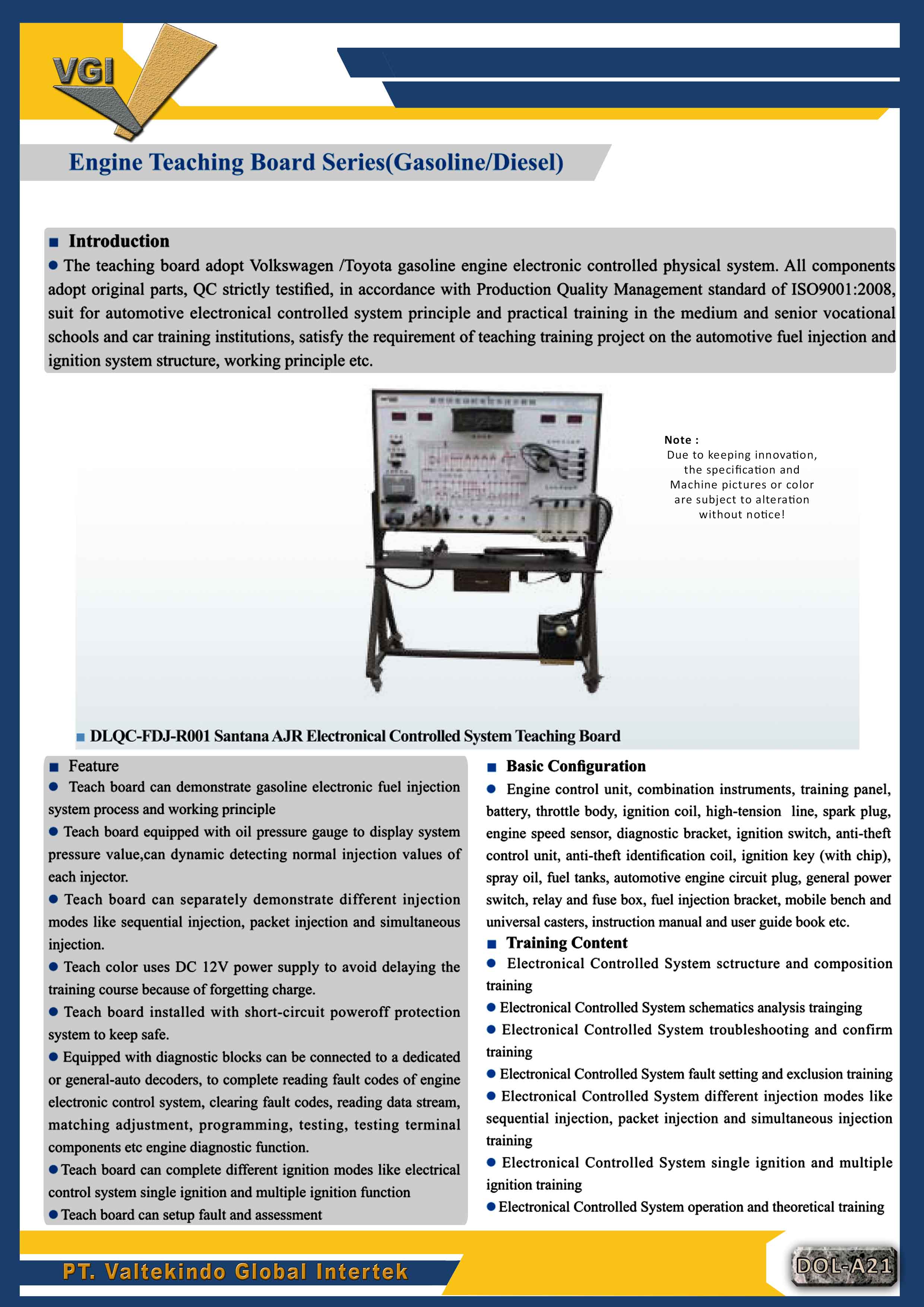

Santana AJR Electronical Controlled System Teaching Board

DESKRIPSI / SPESIFIKASI TEKNIS

Ø  Introduction

·       The teaching board adopt Volkswagen/Toyota gasoline engine electronic controlled physical system. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001:2008, suit for automotive electronical controlled system principle and practical training in the medium and senior vocational schools and car training instructions, satisfy the requirement of teaching training project on the automatic fuel injection and ignition system structure, working principle etc.

Ø  Feature

·       Teach board can demonstrate gasoline electronic fuel injection system process and working principle

·       Teach board equipped with oil pressure gauge to display system pressure value, can dynamic detecting normal injection values of each injector.

·       Teach board can separately demonstrate different injection modes like sequential injection, packet injection and simultaneous injection.

·       Teach color used DC 12V power supply to avoid delaying the training course becase of forgetting charge.

·       Teach board installed with short-circuit poweroff protection system to keep safe.

·       Equipped with diagnosic blocks can be connected to a dedicated or general-auto  decoders, to complete reading fault codes of engine electronic control system, clearing fault codes, reading data stream, matching adjustment, programming, testing, testing terminal components etc engine diagnosic function.

·       Teach board can complete different ignition modes like electrical control system single ignition and multiple ignition function

·       Teach board can fault and assessment

Ø  Basic Configuration

·       Engine control unit, combination instruments, training panel, battery, throttle nody, ignition coil, high-tension line, spark plug, engine speed sensor, diagnosic bracket, ignition switch, anti-theft control unit, anti-theft identification coil, ignition key (with chip), spray oil, fuel tanks, automotive engine circuit plug, general power switch, relay and fuze box, fuel injection bracket, mobile bench and universal casters, instruction manual and user guide book etc.

Ø  Training Content

·       Electronical Controlled System structure and composition training

·       Electronical Controlled system schematics analysis training

·       Electronical controlled system troubleshooting and confirm training

·       Electronical Controlled system different injection and simultaneous injection training

·       Electronical Controlled System single ignition and multiple ignition training

·       Electronic Controlled System operation and theoretical training
