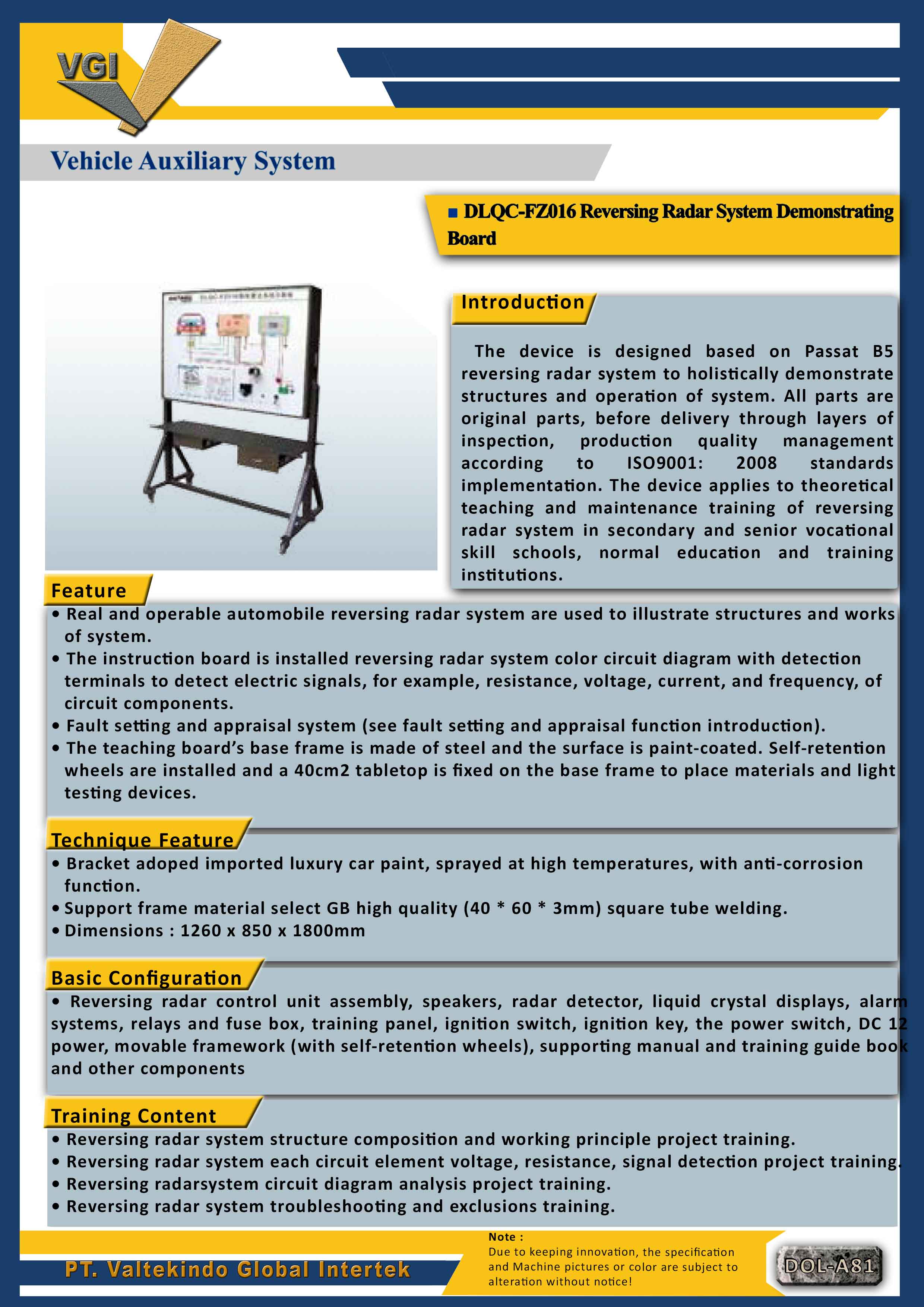

Reversing Radar System Demonstrating Board

DESKRIPSI / SPESIFIKASI TEKNIS

Introduction

The device is designed based on Passat B5 reversing radar system to holistically demonstrate structures and operation of system. All parts are original parts, before delivery through layers of inspection, production quality management according to ISO9001: 2008 standards implementation. The device applies to theoretical teaching and maintenance training of reversing radar system in secondary and senior vocational skill schools, normal education and training institutions.

Feature

• Real and operable automobile reversing radar system are used to illustrate structures and works of system.

• The instruction board is installed reversing radar system color circuit diagram with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components.

• Fault setting and appraisal system (see fault setting and appraisal function introduction).

• The teaching board’s base frame is made of steel and the surface is paint-coated. Self-retention wheels are installed and a 40cm2 tabletop is fixed on the base frame to place materials and lighttesting devices.

Technique Feature

• Bracket adopted imported luxury car paint, sprayed at high temperatures, with anti-corrosion function.

•Support frame material select GB high quality (40 * 60 * 3mm) square tube welding.

•Dimensions : 1260 x 850 x 1800mm

Basic Configuration

• Reversing radar control unit assembly, speakers, radar detector, liquid crystal displays, alarm systems, relays and fuse box, training panel, ignition switch, ignition key, the power switch, DC 12 power, movable framework (with self-retention wheels), supporting manual and training guide book and other components

Training Content

• Reversing radar system structure composition and working principle project training.

• Reversing radar system each circuit element voltage, resistance, signal detection project training.

• Reversing radarsystem circuit diagram analysis project training.

• Reversing radar system troubleshooting and exclusions training.
