Prius Hybid System Training Platform
Klik pada gambar untuk memperbesar
FITUR
DESKRIPSI / SPESIFIKASI TEKNIS
Ø

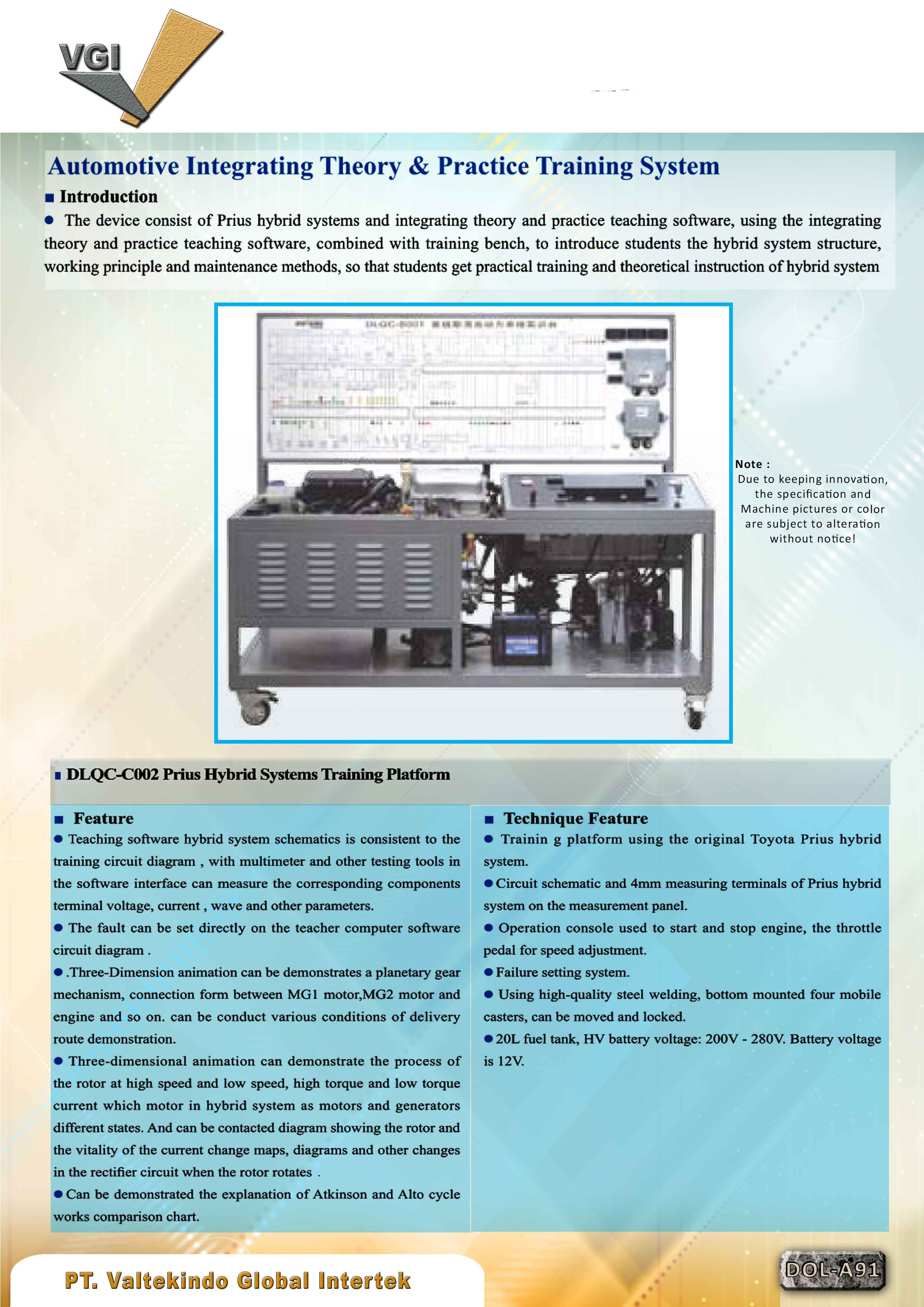

Introduction
·
The
device consist of Prius hybrid systems and integrating theory and practice
teaching teaching software, using the integrating theory and practice teaching
software, combined with training bench, to introduce student the hybrid system
structure, working principle and maintenance methods, so that student get
practical training and theoretical instruction of hybrid system.
Ø
Feature
·
Teaching
software hybrid system schematics is consistent to the training circuit
diagram, with multimeter and other testing tools in the software interface can
measure the corresponding components terminal voltage, current, wave and other
parameters.
·
The
fault can be set directly on the teacher computer software circuit diagram.
·
Three-Dimension
animation can be demonstrate a planetary gear mechanism, connection from
between MGI motor, MG2 motor and engine and so on, can conduct various
conditions of delivery route demonstrate.
·
Three-dimensional
animation can demonstrate the process of the rotor at high and low speed, high
torque and low torque current which motor in hybrid system as motors and
generators different states. And can be contacted diagram showing the rotor and
the vitality of the current change maps, diagrams and other changes in the
rectifier circuit when the rotor rotates.
·
Can
be demonstrate the explanation of Atkinson and Alto cycle works comparison
chart.
Ø
Technique
Feature
·
Training
platform using the original Toyota Prius hybrid system.
·
Circuit
schematic and 4mm measuring terminals of Prius hybrid system on the measurement
panel.
·
Operation
console used to start and stop engine, the throttle pedal for speed adjustment.
·
Failure
setting system.
·
Using
high-quality steel welding, bottom mounted four mobile casters, can be moved
and locked.
·
20L
fuel tank, HV battery voltage: 200V – 280V. Battery voltage is 12V.
