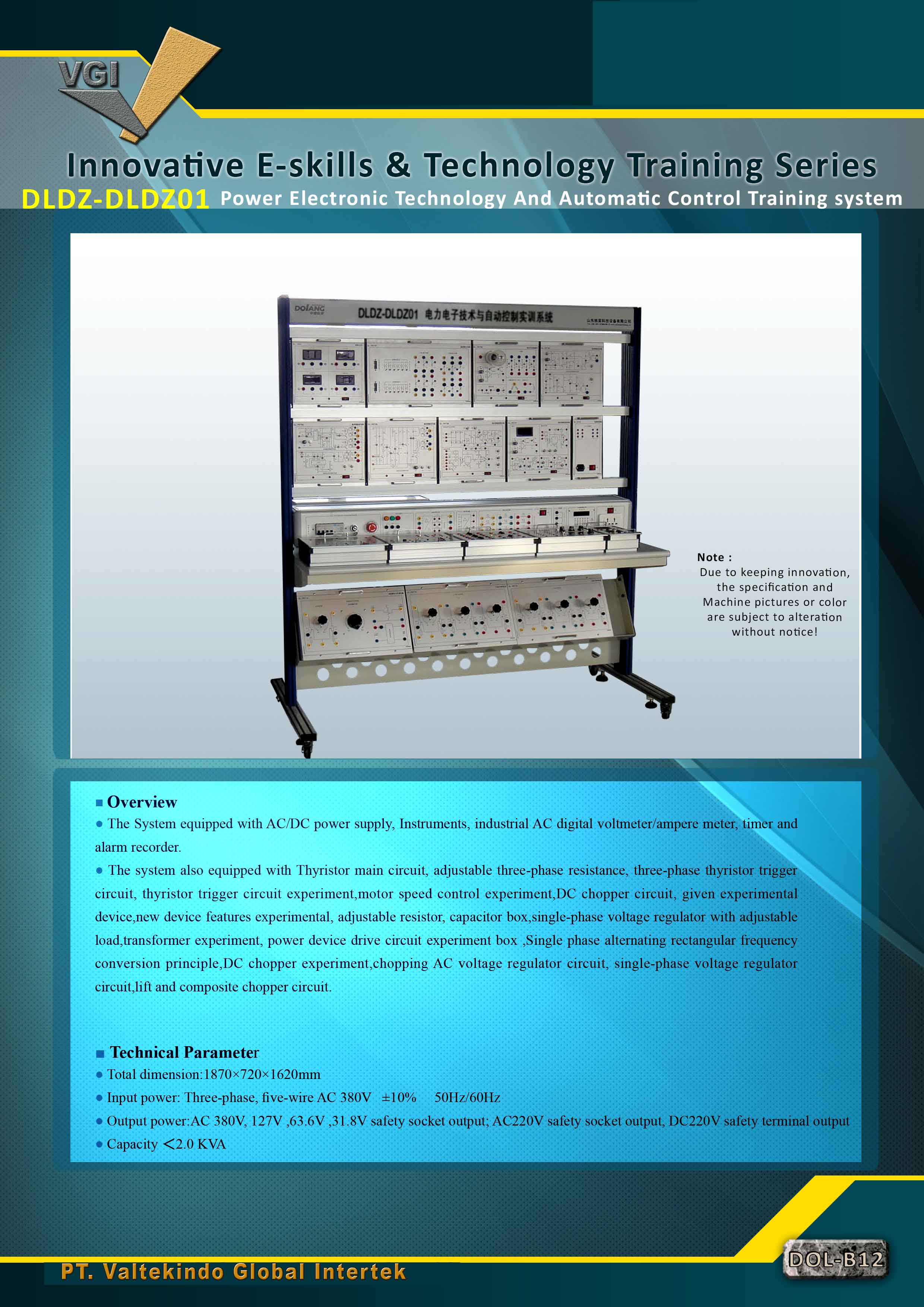

Power Electronic Technology And Automatic Control Training System

DESKRIPSI / SPESIFIKASI TEKNIS

Ø  Overview

·         The system equipped with AC/DC power supply, Instruments, industrial AC digital voltmeter/ampere meter, timer and alarm recorder.

·         The system also equipped  with Thyristor main circuit, adjustable three-phase resistance, three-phase thyristor trigger circuit, thyristor trigger circuit experiment, motor speed control experiment, DC chopper circuit, given experimental device, new device features experimental, adjustable resistr, capacitor box, single-phase voltage regulator with adjustable load, transformer experiment, power device drive circuit experimental box, Single phase alternating rectangular frequency conversion principle, DC chopper experiment, chopping AC voltage regulator circuit, single-phase voltage regulator circuit, lift and compocite chopper circuit.

Ø  Technical Parameter

·         Total dimension : 1870x720x1620mm

·         Input power : Three-phase, five-wire AC 380V ± 10% 50Hz/60Hz

·         Output power : AC 380V, 127V, 63.6V, 31.8V safety output; AC 220V safety socket output, DC220V safety terminal output.

·         Capacity < 2.0 KVA
