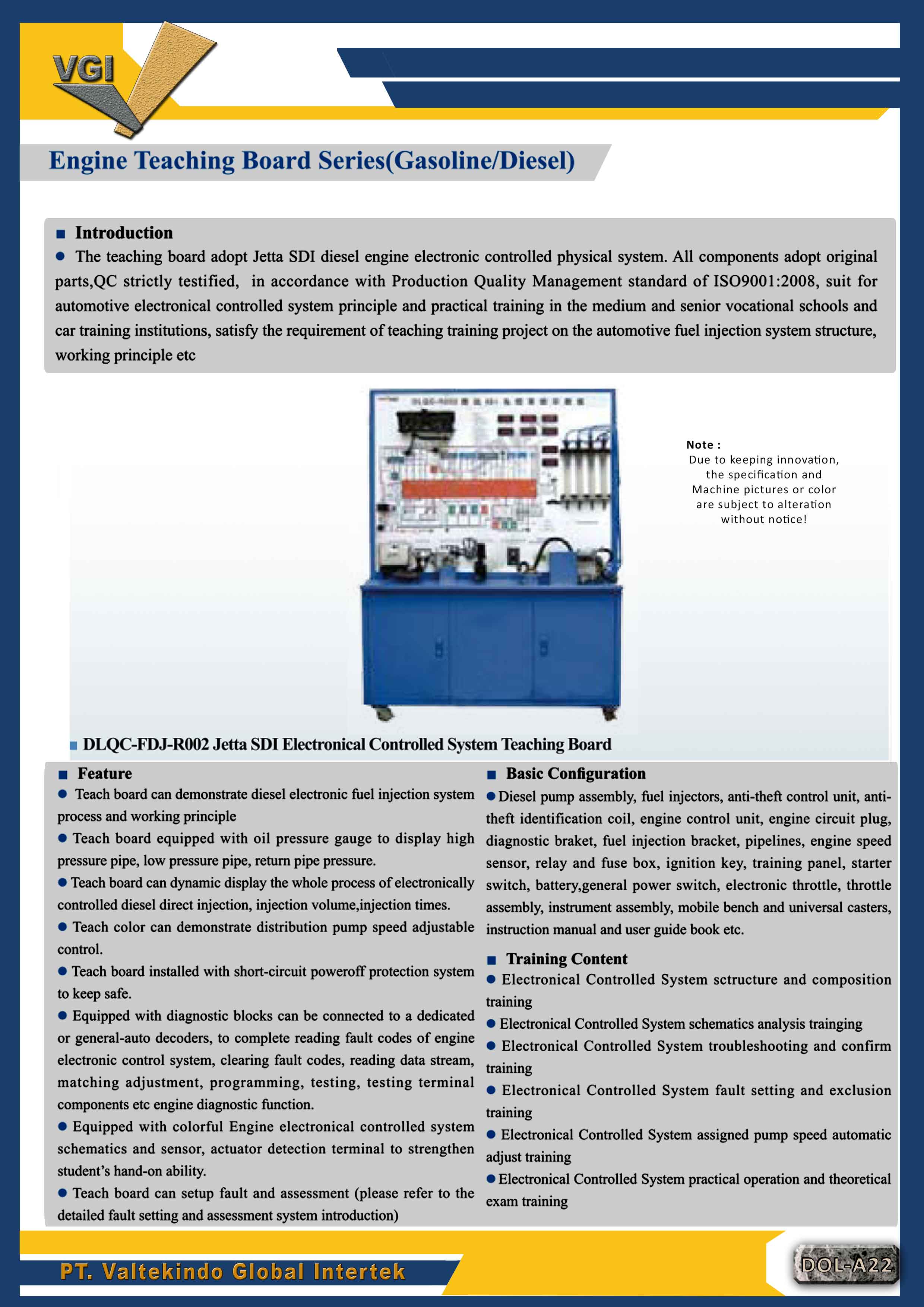

Jetta SDI Electronical Controlled System Teaching Board

DESKRIPSI / SPESIFIKASI TEKNIS

Ø  Introduction

·       The teaching board adopt Jetta SDI diesel engine electronic controlled physical system. All components adopt original parts, QC strictly testofoed, in accordance with Production Quality Management standard of ISO9001:2008, suit for automotive electronical controlled system principle and practical training in the medium and senior vocational schools and car training institutions, satisfy the requirement of teaching project on the automotive fuel injection system structure, working principle etc

Ø  Feature

·       Teach board can demonstrate diesel electronic fuel injection system process and working principle

·       Teach board equipped with oil pressure gauge to display high pressure pipe, low pressure pipe, return pipe pressure.

·       Teach board can dynamic display the whole process of electronically controlled diesel direct injection, injection volume, injection times.

·       Teach color can demonstrate distribution pump speed adjustable control.

·       Teach board instelled with short-circuit poweroff protection system to keep safe.

·       Equipped with diagnosic blocks can be connected to a dedicated or general-auto decoders, to complete reading fault codes of engine electronic control system, clearing fault codes, reading data stream, matching adjustment,programming, testing,testing terminal components etc engine diagnosic function.

·       Equipped with colorful engine electronical cotrolled system schematics and sensor, actuator detection terminal to strengthen student’s hand-on ability.

·       Teach board can setup fault and assessment (please refer to the detailed fault and assessment system introduction

Ø  Basic Configuration

·       Diesel pump assembly, fuel injectors, anti-theft control unit, anti-theft identifications coil, engine control unit, engine circuit plug, diagnosic braket, fuel injection bracket, pipelines, engine speed sensor, relay and fuse box, ignition key, training panel, starter switch, battery, general power switch, electronic throttle, throttle assembly, instrument assembly, mobile bench and universal caters, instruction  manual and user guide book etc.

Ø  Training Content

·       Electronical Controlled system structure and composition training

·       Electrical Controlled system schematics analysis training

·       Electronical Controlled system troubshooting and confirm training

·       Electronical Controlled system fault setting and exclusion training

·       Electronical Controlled System assigned pump speed automatic adjust training

·       Electronical Controlled system practical operation and theoretical exam training.
