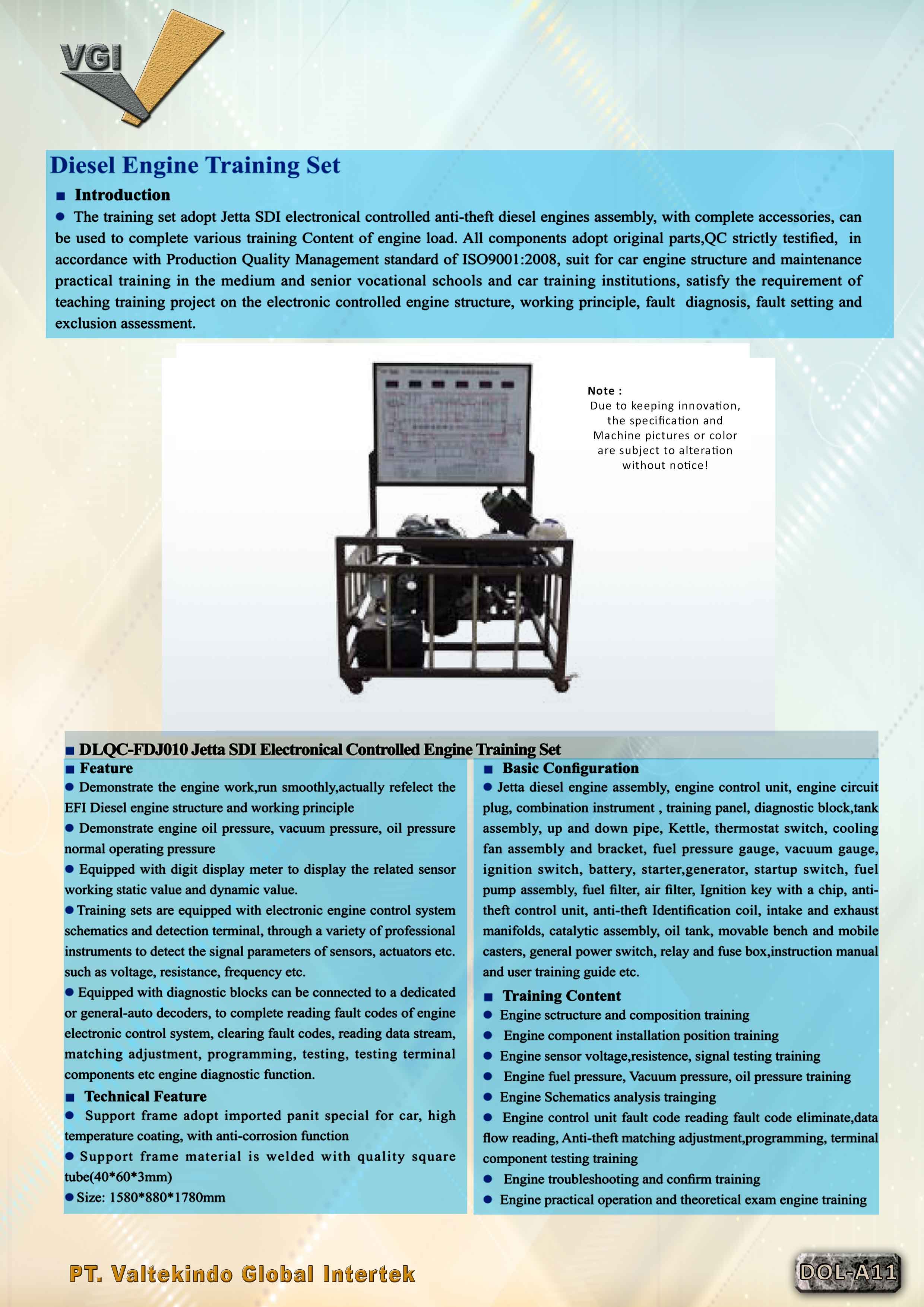

Jetta SDI Electronical Controlled Engine Training Set

DESKRIPSI / SPESIFIKASI TEKNIS

Ø  Introduction

·         The training set adopt Jetta SDI electronical controlled anti-theft diesel engines assembly, with complete accessories, can be used to complete various training Content of engine load. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001:2008, suit for car engine structure and maintenance practical training in the medium and senior vocational schools and car training institutions, satisfy the requirements of teaching training project on the controlled engine structure, working principle, fault diagnosic, fault setting and exclusion assessment

Ø  Features

·         Demonstrate the engine work, run smoothly, actually refelect the EFI Diesel engine structure and working principle

·         Demostrate engine oil pressure, vaccum pressure, oil pressure normal operating pressure

·         Equipped with digit display meter to display the related sensor working static value and dynamic value.

·         Training sets are equipped with electronic engine control system schematics and detection terminal, through a variety of propessional instruements to detect the signal parameters of sensors, actuators etc. such as voltage, resistance, frequency etc.

·         Equipped with diagnosic blocks can be connected to a dedicated or general-auto decoders, to complete reading fault codes of engine electronic control system, clearing falut codes, reading data stream, matching adjustment, programming, testing, testing terminal components etc engine diagnosic function.

Ø  Technical Feature

·         Support frame adopt imported panit special for car, high temperature coating, with anti-corrosion function

·         Support frame material is welded with quality square tube (40*60*3mm)

·         Size : 1580*880*1780mm

Ø  Basic Configuration

·         Jetta diesel engine assembly, engine control unit, engine circuit plug, combination instrument, training panel, diagnosic block, tank assembly, up and down pipe, Kettle, thermostat switch, cooling fan assembly and bracket, fuel pressure gauge, vaccum gauge, ignition switch, battery, starter, generator,startup switch, fuel pump assembly, fuel filter, air filter, Ignition key with a chip, anti-theft control unit, anti-theft Identification coil, intake and mobile casters, general power switch, relay and fuse box, instruction manual and user training guide etc.

Ø  Training Content

·         Engine sctructure and composition training

·         Engine component installation position training

·         Engine sensor voltage, resistance, signal testing training

·         Engine fuel pressure, Vaccum pressure, oil pressure training

·         Engine Schematics analysis training

·         Engine control unit fault code reading fault code elimate, data flow reading, Anti-theft matching adjustment, programming, terminal component testing training

·         Enging troubleshooting and confirm training

·         Engine practical operation and theoretical exam engine training
