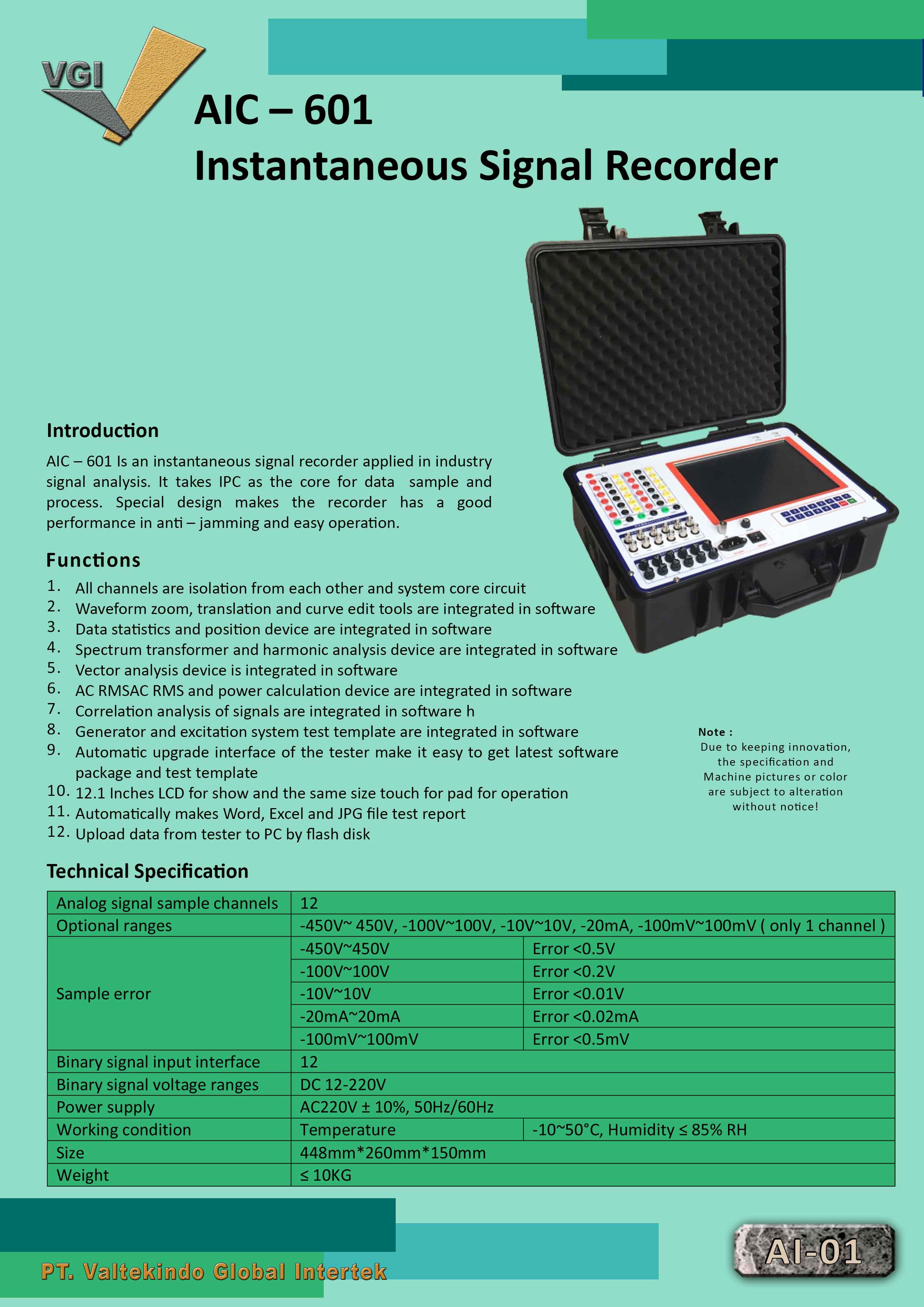

Instantaneous Signal Recorder

DESKRIPSI / SPESIFIKASI TEKNIS

1.      Introduction

AIC – 601 Is an instantaneous signal recorder applied in industry signal analysis. It takes IPC as the core for data sample and process. Special design makes the recorder has a good performance in anti – jamming and easy operation.

2.      Functions

1.      All channels are isolation from each other and system core circuit

2.      Waveform zoom, translation and curve edit tools are integrated in software

3.      Data statistics and position device are integrated in software

4.      Spectrum transformer and harmonic analysis device are integrated in software

5.      Vector analysis device is integrated in software

6.      AC RMSAC RMS and power calculation device are integrated in software

7.      Correlation analysis of signals are integrated in software

8.      Generator and excitation system test template are integrated in software

9.      Automatic upgrade interface of the tester make it easy to get latest software package and test template

10.   12.1 Inches LCD for show and the same size touch for pad for operation

11.   Automatically makes Word, Excel and JPG file test report

12.   Upload data from tester to PC by flash disk

1.      Technical Specification
