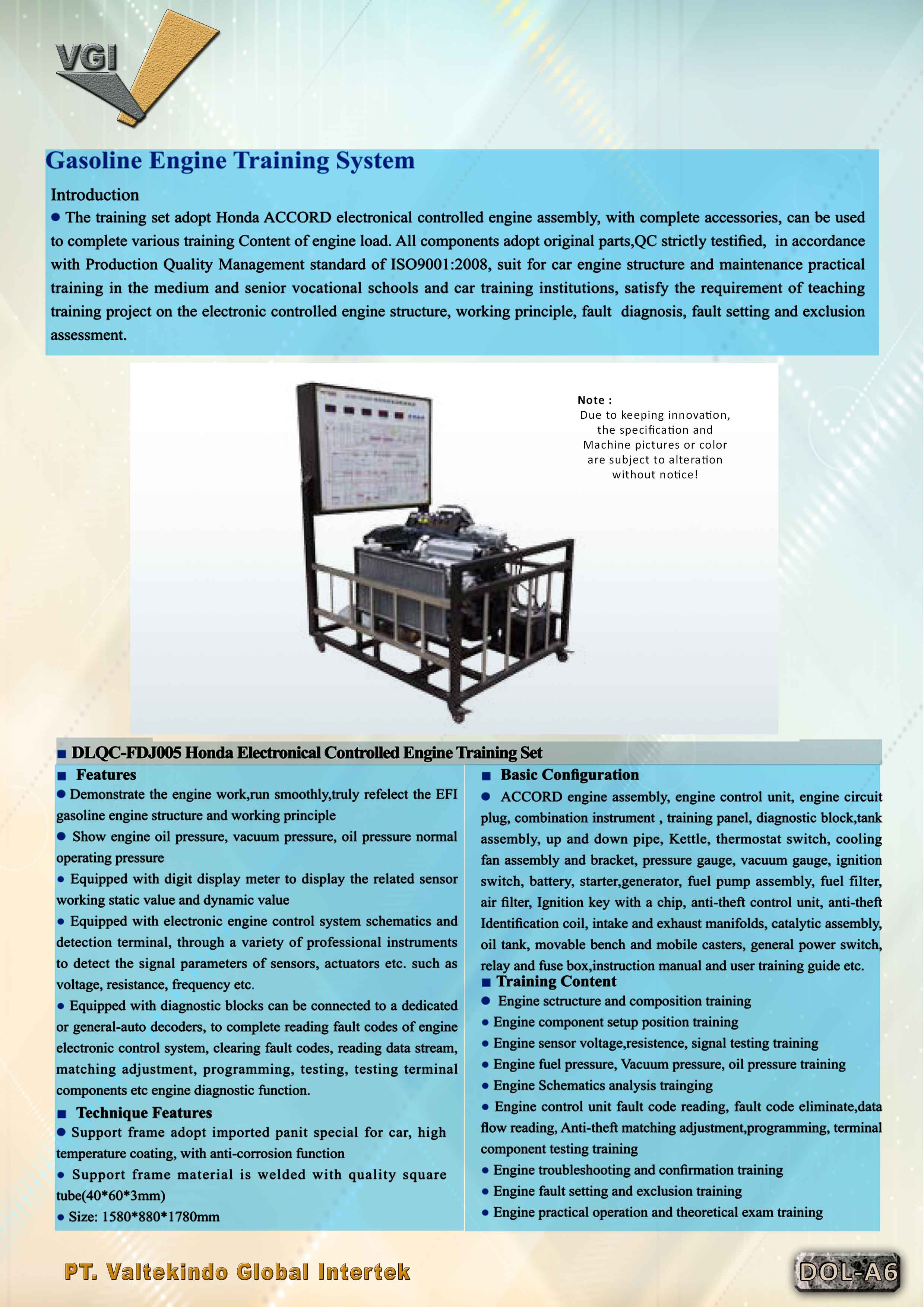

Honda Electronical Controlled Engine Taining Set

DESKRIPSI / SPESIFIKASI TEKNIS

Introduction

·         The training set adopt Honda ACCord electronical controlled engine assembly, with complete, can be used to complete various training Content of engine load. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001:2008, suit for car engine structure and maintenance practical training in the medium and senior vocational schools and car training instructions, satisfy the requirement of teaching training project on the electronic controlled engine structure, working principle, fault diagnosic, fault setting and exclusion assessment.

Ø  Features

·         Demonstrate the engine work, run smoothly, truly refelect the EFI gasoline engine structure and working principle

·         Show engine oil pressure, vaccum pressure, oil pressure normal operating pressure.

·         Equipped with digit display meter to disypay the related sensor working static value and dynamic value

·         Equipped with electronic engine control system schematics and detection terminal, through a variety of professional instrument to detect the signal parameters of sensors, actuators etc. such as voltage, resistance, frequency etc.

·         Equipped with diagnosic blocks can be connected to a dedicated or general-auto decoders, to complete reading fault codes of engine electronic control system, clearing fault codes, reading data stream, matching adjustment, programming, testing, testing terminal components etc engine diagnosic function.

Ø  Technique Features

·         Support frame adopt imported panit special for car, high temperature coating, with-anti-corrosion function

·         Support frame material is welded quality square tube (40*60*3mm)

·         Size: 1580*880*1780mm

Ø  Basic Configuration

·         ACCORD engine assembly, engine control unit, engine circuit plug, combination instrument panel, diagnosic block, tank assembly, up and doqn pipe, Kettle, thermostat switch, cooling fan assembly and bracket, pressure gauge, vaccum gauge, ignition switch, battery, starter, generator, fuel upup assembly, fuel filter, air filter, Ignition key with a chip, anti-theft control unit, anti-theft Identification coil, intake and exhaust mabifolds, catalytic assembly, oil tank, movelable benck and mobule casters, general power switch, relay and fuse box, instruction manual and user training guise etc.

Ø  Training Content

·         Engine structure and composition training

·         Engine component setup position training

·         Engine sensor voltage, resistance, signal testing training

·         Engine fuel, Vacuum pressure, oil pressure training

·         Engine Schematics analysis training

·         Engine control unit fault code reading, fault code elimate, data flow reading, Anti-theft matching adjustment, programming, terminal component testing training

·         Engine troubleshooting and confirmation training

·         Engine fault setting and exclusion training

·         Engine practical operation and theoretical exam training
