Four-wheel Steering System Training Workbench

DESKRIPSI / SPESIFIKASI TEKNIS

Ø  Introduction

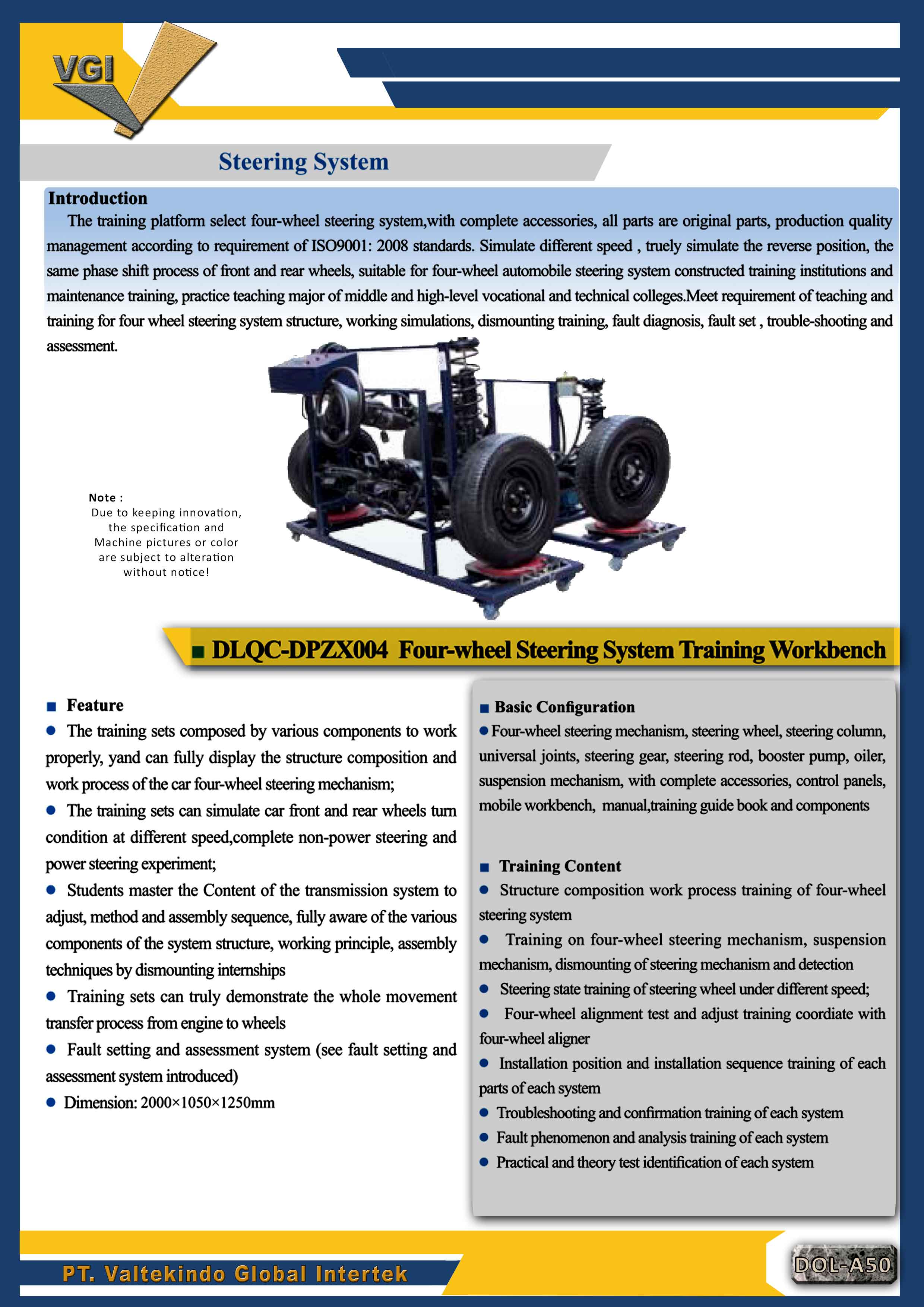

·         The training platform select four-wheel steering system, with complete accessories, all parts are original parts, production quality management according to requirement of ISO9001:2008 standards, Simulate different speed, truly the reverse position, the same phase shift process of front and rear wheels, suitable for four-wheel automobile steering system constructed training institutions and maintenance training, practice teaching major of middle and high-level vocational and technical colleges, Meet requirement of teaching and training for four wheel steering system structure, working simulations, dismounting training, fault diagnostic ,fault set, trouble-shooting and assessment.

Ø  Feature

·         The training sets composed by various component to work properly, and can fully display the structure composition and work process of the car four-wheel steering mechanism;

·         The training sets can simulate car front and rear wheels turn condition at different speed, complete non-power steering and power steering experiment;

·         Student master the Content of the transmission system to adjust, method and assembly sequence, fully aware of the various components of the system structure, working principle, assembly techniques by dismounting item ships.

·         Training sets can truly demonstrate the whole movement transfer process from engine to wheels

·         Fault setting and assessment system ( see fault setting and assessment system introduced)

·         Dimension: 2000x1050x1250mm

Ø  Basic Configuration

·         Four-wheel steering mechanism, steering wheel, steering column, universal joints, steering gear, steering rod, booster pump, oiler, suspension mechanism, with complete accessories, control panels, mobile work bench, manual, training guide book and components.

Ø  Training Content

·         Structure composition work process training of four-wheel steering system

·         Training on four-wheel steering mechanism, suspension mechanism, dismounting of steering mechanism and detection

·         Steering state training of steering wheel under different speed;

·         Four-wheel alignment test and adjust training coordinate with four-wheel aligner

·         Installation position and installation sequence training of each parts of each system

·         Trouble shooting and confirmation training of each system

·         Fault phenomenon and analysis training of each system

·         Practical and theory test identification of each system
